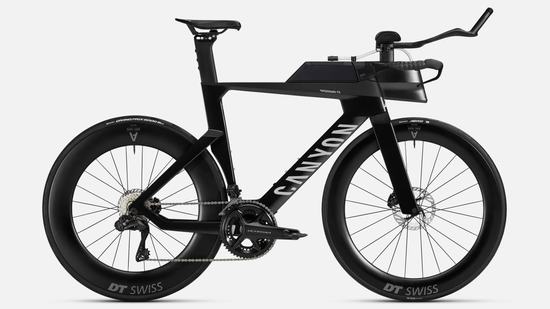

Велосипед триатлон Canyon Speedmax CF 8 Di2 Race

Highlights Speedmax CF 8 Di2 Race Speedmax CF Canyon 3D Toolbox and Aero Bottle The Canyon Fuel Aero Bottle blends seamlessly into the frame’s tube shapes, making it the most aerodynamic way to carry hydration inside your frame triangle. The integrated Fidlock system locks the 650 ml bottle firmly in place – even over rough road surfaces. More storage, less drag: download the free 3D print files for the Aero Toolbox below. Designed to close the gap behind the bottle, it adds space for tools and spares while maintaining a clean aero profile.Download 3D print files /> /> /> /> /> /> /> Canyon Sticker Set Bringing your own style to T2 has never been so simple. Customise your Speedmax CF with this bespoke Canyon frame and fork sticker pack, and make your bike truly yours. Key features An adjustable, integrated aero carbon cockpit With fully integrated cable routing, stepless extension tilt adjustment, and premium one-piece carbon construction, this is the most streamlined, integrated, and adjustable Speedmax CF cockpit ever. To save extra watts, the cockpit interfaces neatly with the frame and is compatible with our dedicated aero-optimised front hydration system. /> /> /> /> /> /> /> Streamlined hydration system Enjoy 750 ml of rapid-access hydration with the Speedmax CF’s Front Hydration System, aero optimized in conjunction with the head tube for maximum aerodynamic performance. Using the integrated magnet, attach the drinking straw to the extensions for instant access, or onto the top tube for maximum aero efficiency. Cleaning is easy – just remove and re-mount with a single click – and the system comes with an integrated computer mount too. /> /> /> /> /> /> /> Aerodynamic seatstays With forms inherited from our top-line Speedmax CF SLX and CFR platforms, we designed the seatstays of the Speedmax using advanced CFD technology and wind tunnel testing. The outcome? The latest Speedmax, one of the most aero triathlon bikes ever created. /> /> /> /> /> /> /> Bento box In triathlon, having quick and easy access to your nutrition is key. That’s why we place a hard-shell Bento box on the tope tube, right at your fingertips. Equipped with hinged lid for optimum durability and ease-of-use, this is the ideal place for storing your gels and bars. Components

• Frame
  • Canyon Speedmax CF
  • Axle dimension 12x142 mm
  • Tyre clearance 30 mm
  • Material Carbon (CF)
  • Weight 1,340 g
• Fork
  • Speedmax fork
  • Fork steer tube diameter 1 1/8'
  • Tyre clearance 30 mm
  • Weight 576 g
• Seatpost Clamp
  • Canyon Seatclamp for S31/S32
• Seatpost Clamp
  • Canyon GP0209-01 Seatclamp

• Battery
  • Shimano BT-DN300 Di2 Battery
• Rear Derailleur
  • Shimano Ultegra Di2
  • Cage length short
  • Weight 260 g
• Front Derailleur
  • Shimano Ultegra Di2 FD-R8150
  • Weight 111 g
• Shift Lever
  • Shimano Dura-Ace Di2 R9160 Remote TT
  • Weight 19 g
• Cassette
  • Shimano CS-R8101 11-30 12s
  • Number of sprockets 12
  • Range 11-30
• Crank
  • Shimano Ultegra R8100
  • Works with Apple FindMy
  • Number of chainrings 2
• Bottom bracket
  • Shimano Pressfit BB72
  • Bottom bracket standard PF 86,5
  • Weight 65 g
• Chain
  • Shimano XT

• Shift-/ Brake Lever
  • Shimano Dura-Ace
  • Number of pistons 2
  • Weight 277 g
• Shift-/ Brake Lever
  • Shimano Dura-Ace
  • Number of pistons 2
  • Weight 278 g
• Brake Rotor
  • Shimano Ultegra RT-CL800
  • Size 140 mm
  • Weight 95 g
• Brake Rotor
  • Shimano Ultegra RT-CL800
  • Size 160 mm
  • Weight 112 g

• Front Wheel
  • DT Swiss ARC 1600 Spline
  • Axle dimension 12x100 mm
  • Rotor mount Center Lock
  • Rim height 65 mm
  • Inner width 22 mm
  • Rim material Carbon
  • Weight 812 g
• Rear Wheel
  • DT Swiss ARC 1600 Spline
  • Axle dimension 12x142 mm
  • Rotor mount Center Lock
  • Rim height 85 mm
  • Rim material Carbon
• Wheel Tire System
  • DT Swiss ARC 1600 Dicut 65mm
• Wheel Tire System
  • Continental Aero 111
• Tyre
  • Continental Grand Prix 5000 S TR, 28mm
  • Width 28 mm
  • Weight 294 g
• Tyre
  • Continental Aero 111
  • Width 26 mm
  • Weight 246 g
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension 12x100 mm
• Thru Axle
  • DT Swiss Through Axle
  • Axle dimension 12x142 mm

• Cockpit
  • Canyon CP0041 Triathlon Flatbar Long
  • Material Carbon (CF)
  • Weight 438 g
• Aero Bar
  • Profile Design 52ASC
• Handlebar Tape
  • Canyon Ergospeed Gel
  • Grippy, durable bar tape with a premium, high-quality, comfortable feel.
  • Color Black

• Saddle
  • Fizik Transiro Aeris R5 Long Distance
  • Gender Unisex
  • Weight 223 g
• Seatpost
  • Canyon SP0048 Aero Seatpost
  • Speedmax time trial seatpost, deep profile, large adjustment range, UCI compliant.
  • Weight 300 g

• Lights
  • Reflector Set

• Bottles
  • Canyon Speedmax Hydration System
• Pedals
  • None included
• Manuals and Accessories
  • Canyon Organza Bag
• Manuals and Accessories
  • Canyon Assembly Paste
• Manuals and Accessories
  • Canyon Torque Wrench
• Manuals and Accessories
  • Canyon Toolbag for Speedmax CF Disc
• Manuals and Accessories
  • Smallbox

Basic geometry XS S M L XL Detailed geometry table

XS	S	M	L	XL
Body Height in cm	≤ 166	166 — 174	174 — 186	186 — 196	≥ 196
Seat Height in mm (a)	613 — 733	651 — 771	696 — 846	730 — 880	760 — 910
Seat Tube Length in mm (b)	480	518	543	577	607
Top Tube Length in mm (c)	454	489	511	540	570
Head Tube Length in mm (d)	113	115	140	176	207
Head Tube Angle (e)	72°	73°	73°	73°	73°
Seat Tube Angle (f)	80,5°	80,5°	80,5°	80,5°	80,5°
Chainstay Length in mm (g)	410	420	420	420	420
Wheel Base in mm (h)	956	988	1.014	1.046	1.081
Stack in mm (i)	482	519	544	578	608
Reach in mm (j)	374	402
